RV Series
Standard Features
Click to view the standard features
CONSTRUCTION
Composite Shell Construction
– INTELLI-CORE Structural Composite Floor, Walls, and Roof
– Aluminum Alloy Frame, 360 Deg Welds at Joints
– Aluminum Wheels
– Long Arm Torsion Suspension
– High-Speed Electric Jack Lift/Lower System with Push Button Controls
– Fully Insulated Ramp Door w/ 86″ x 85.5″ Rear Opening
– Color Matched INTELLI-CORE Structural Composite Doors
ELECTRICAL
– Bluetooth Capable Unit Control Through Phone App
– Perimeter LED Lighting w/ Dimmer Control; LED Task Lighting
– 110V Outlet, 12V Outlet, USB Charge ports
– 45 Amp Power Center, Battery Gauge, Battery Disconnect Switch
– AM/FM/CD/DVD Stereo w/Bluetooth & Marine Speakers
– 40″ 12VDC Sidewall TV on Locking Side Arm Mount w/ Digital King Omni-Pro Antenna
– LP/CO Alarm, Smoke Detector, Fire Extinguisher
COMFORT
– High-Efficiency Forced Air Truma Combi Furnace (12V/LP or 110V modes)
– High Efficiency, Low Profile A/C Unit (15K BTU, 13 amps Power Draw, 110V)
BATHROOM + KITCHENETTE
Kitchen
– 21” Oven and 3 Burner Cooktop w/ Flush Glass Top and Exhaust Fan
– Stainless Steel 1 Cu Ft Microwave
– Kitchen Sink
– Large 10 cu ft Refrigerator that Runs on 12V. Run It Down the Road; No Hole in the Wall!
Bathroom
– Full Flushing Toilet
– Sink in Bathroom
– Year-Round Usability
– Advanced Water System that is Usable 365 Days a Year
– Quick, Easy Drain Down
TANK CAPABILITIES
3/4 Bath
– 19 Gallon Fresh Water Tank
– 38 Gallon Grey Tank
– 33 Gallon Black Tank
1/2 Bath
– 15 Gallon Fresh Water Tank
– 33 Gallon Grey/Black Water (Combined Grey/Black)
OPTIONS
Electrical
– Armless Electric Side Awning w/ Auto Rain and Wind Control
– Exterior RGB Kit w/ RGB Control Center
E-DRIVE:
– Up to 1.2kW Solar Panel Package
– Up to 15.3kWh Energy Storage
– 4kW Constant 120VAC Power / 9kW Boost
Furniture
– Premium CORE Mid Back Captain’s Chair (Chair, Mount, 12″ Post)
– Premium CORE Atwood Centric Boat Seat (Seat, Mount, 15″ Post)
– Pedestal Seat Base (Springfield Plug-In Style, Base Only)
Entertainment
– Fusion Exterior In-Wall Marine Soundbar
– Exterior Coax Port
Interior Finish
– Walnut Woodgrain Flooring Upgrade
8019RV
Size – 8′ x 19.5′
Length – 266″
Height – 119″
Garage Space – ( Lx W x H)
– 1/2 Bath: 143″ x 73″ x 85″
– 3/4 Bath: 116″ x 73″ x 85″
Base Weight – 3,707 lbs
GVWR – 6,250 lbs
Holes Up To 7
Floor Plans
8022RV
Size – 8′ x 22.5′
Length – 266″
Height – 119″
Garage Space – ( Lx W x H)
– 1/2 Bath: 174″ x 73″ x 85″
– 3/4 Bath: 148″ x 73″ x 85″
Base Weight – 4,950 lbs
GVWR – 9,999 lbs
Holes Up To 7

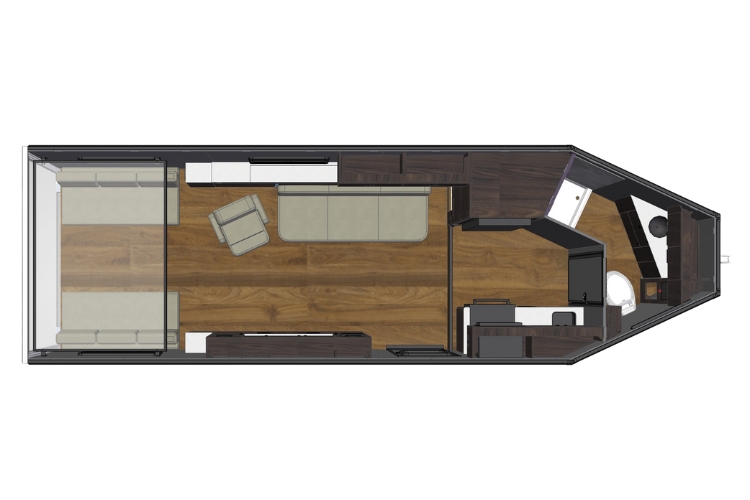

Floor Plans

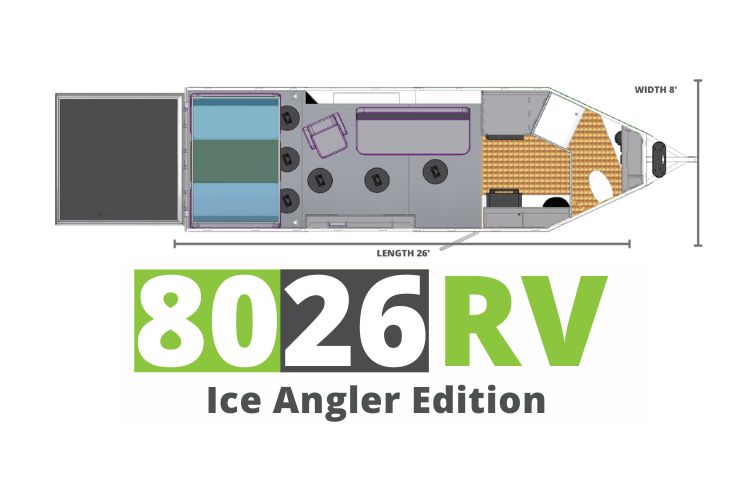

8026RV
Size – 8′ x 26.5′
Length – 320″
Height – 119″
Garage Space – ( Lx W x H)
– 1/2 Bath: 221″ x 73″ x 85″
– 3/4 Bath: 195″ x 73″ x 85″
Base Weight – 5,490 lbs
GVWR – 9,999 lbs
Holes Up To 7
Core Ice
